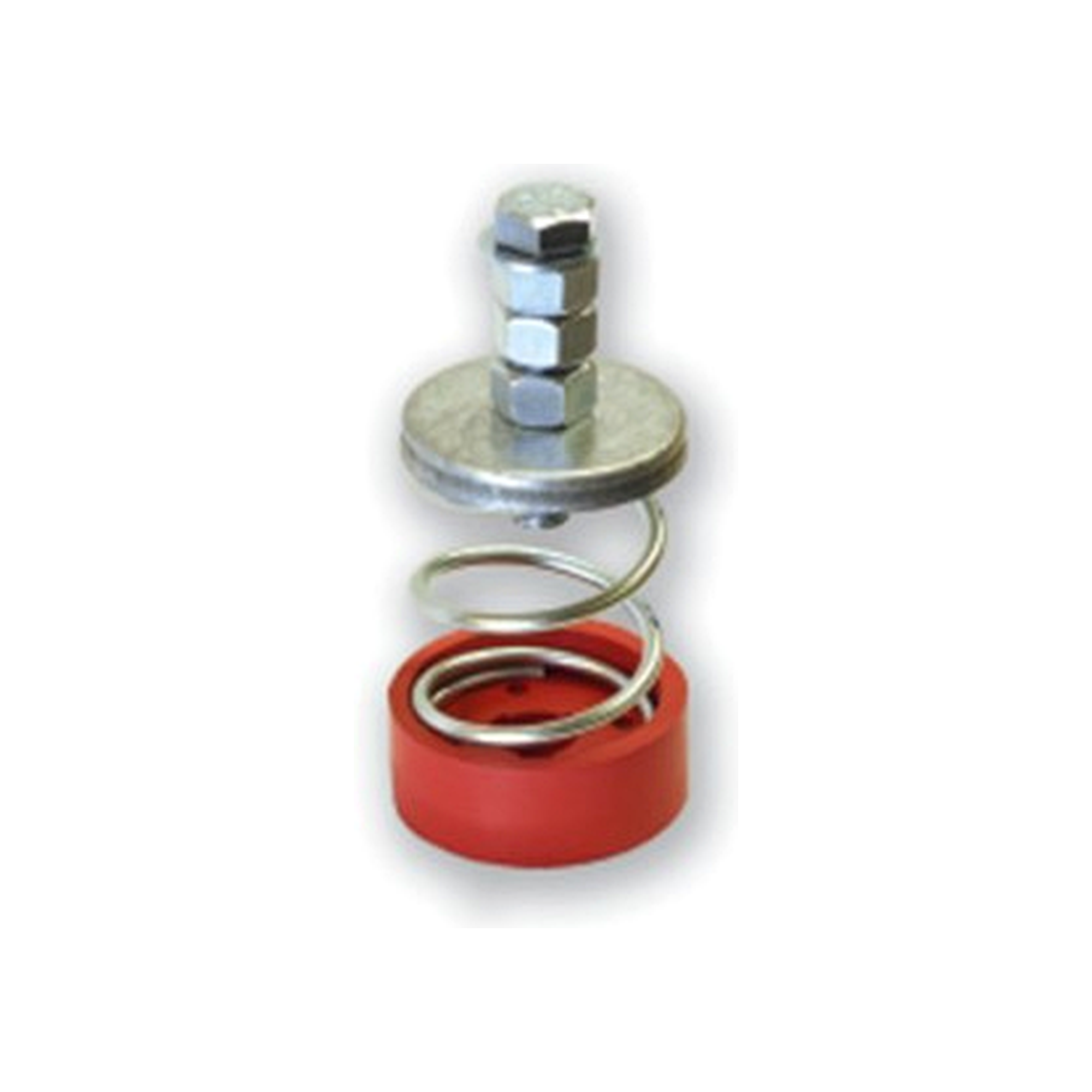

XS XL Open Spring Mount

XS XL Open Spring Mount

Price on application
Price on application. Select the exact model or configuration, then request current pricing from Streamline Commercial Kitchens.
Request pricing
sales@slck.com.au

Colour coded for easy identification Fully weather proofed Rubber isolated bolt hole in base Built in levelling bolt with locking cap screw (XL only) Separate top and bottom locating cups Heavy duty stable steel spring DATA SHEET Mounts-Spring-Rubber- Download

SKU: CFM-SPRINGMT
Category: ,

Description

XS-XL Open Spring Mount

Steel spring mount for effective isolation of noise and vibration from mechanical equipment. Easily installed and the spring can be easily interchanged to give a wide range of load/deflection characteristics.

Common Applications

Load range of 10kg – 200kg

Features

  • Colour coded for easy identification
  • Fully weather proofed
  • Rubber isolated bolt hole in base
  • Built in levelling bolt with locking cap screw (XL only)
  • Separate top and bottom locating cups
  • Heavy duty stable steel spring



DATA SHEET Mounts-Spring-Rubber- Download

Shipping Dimensions

Weight 1 kg
Dimensions 20 × 15 × 10 cm
Model / load

XS-9 — 10 kg — 33 mm — Yellow, XS-10 — 15 kg — 33 mm — Brown, XS-11 — 30 kg — 33 mm — Blue, XS-12 — 50 kg — 28 mm — Black, XS-13 — 75 kg — 25 mm — Red, XS-14 — 125 kg — 25 mm — Green, XS-16 — 175 kg — 20 mm — Grey, XS-17 — 200 kg — 15 mm — Orange, XL-89 — 10 kg — 40 mm — White, XL-90 — 20 kg — 38 mm — Violet, XL-91 — 35 kg — 35 mm — Violet/Black, XL-92 — 50 kg — 33 mm — Yellow, XL-93 — 100 kg — 33 mm — Brown, XL-94 — 150 kg — 30 mm — Blue, XL-95 — 200 kg — 30 mm — Black, XL-96 — 250 kg — 20 mm — Red
