Description

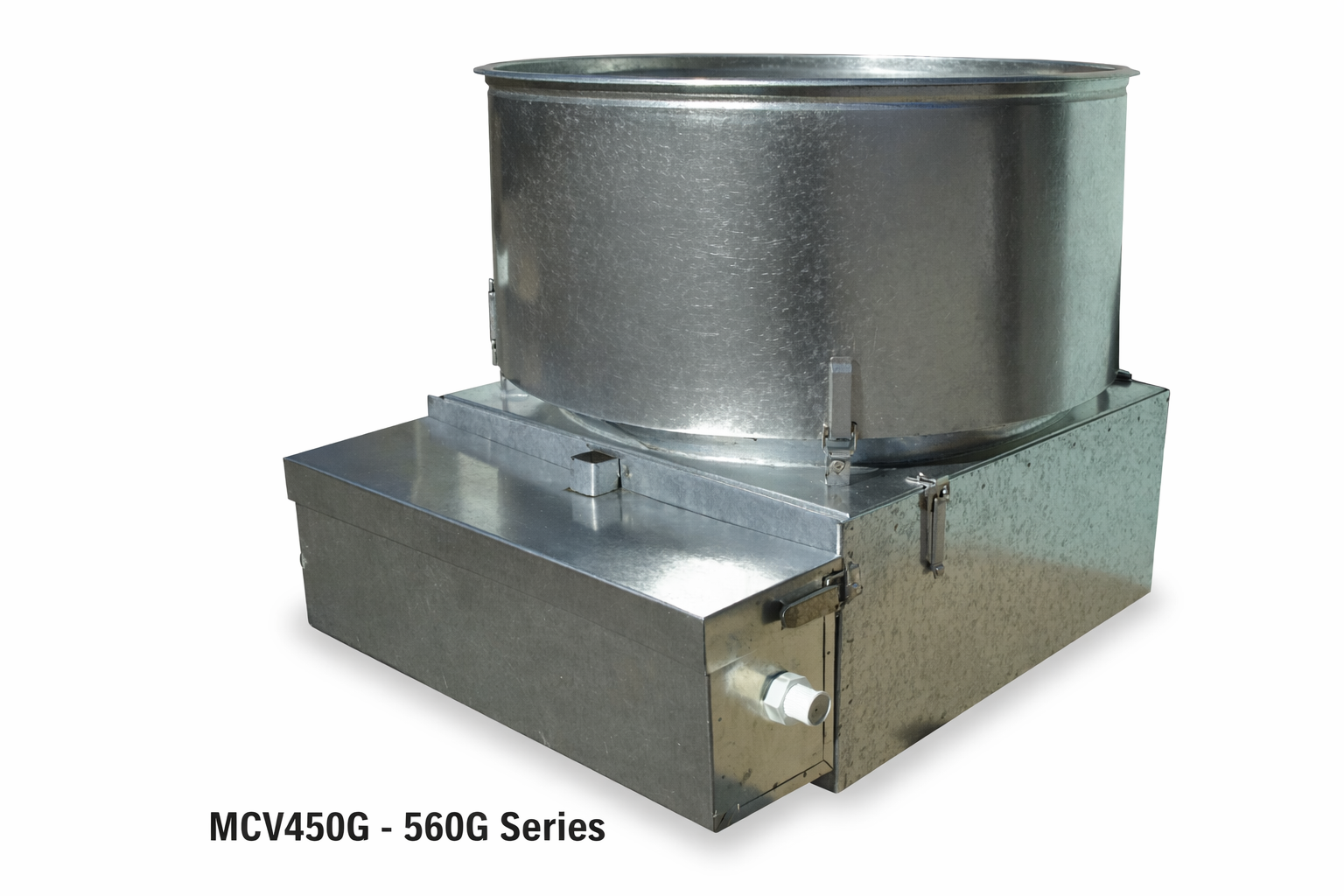

Backward curved centrifugal impeller with high quality external rotor motor for high pressure exhaust applications.
Common Applications
- Suitable for high temperature kitchen exhaust systems
- High grease applications
Variable Sizes (mm)
450, 500, 560
Features
- Capable of handling up to 2800 L/Sec and static pressure up to 600 Pa
- Performance tests are in accordance with ISO5801 (2017)
- Noise level tests are under BS848 Part 2 (1985) and DIN 45635 Part 38
- Fan diameter from 450mm to 560mm
- Fully weather proof galvanized steel housing
- Sealed for life ball bearing motors
- Easy cleaning access with clip lock design
- Available with single and 3 phase motor
- Bird mesh guard
- Painting or colour matching optional extra
- Available in EC version
DATA SHEET MCVG-Download
