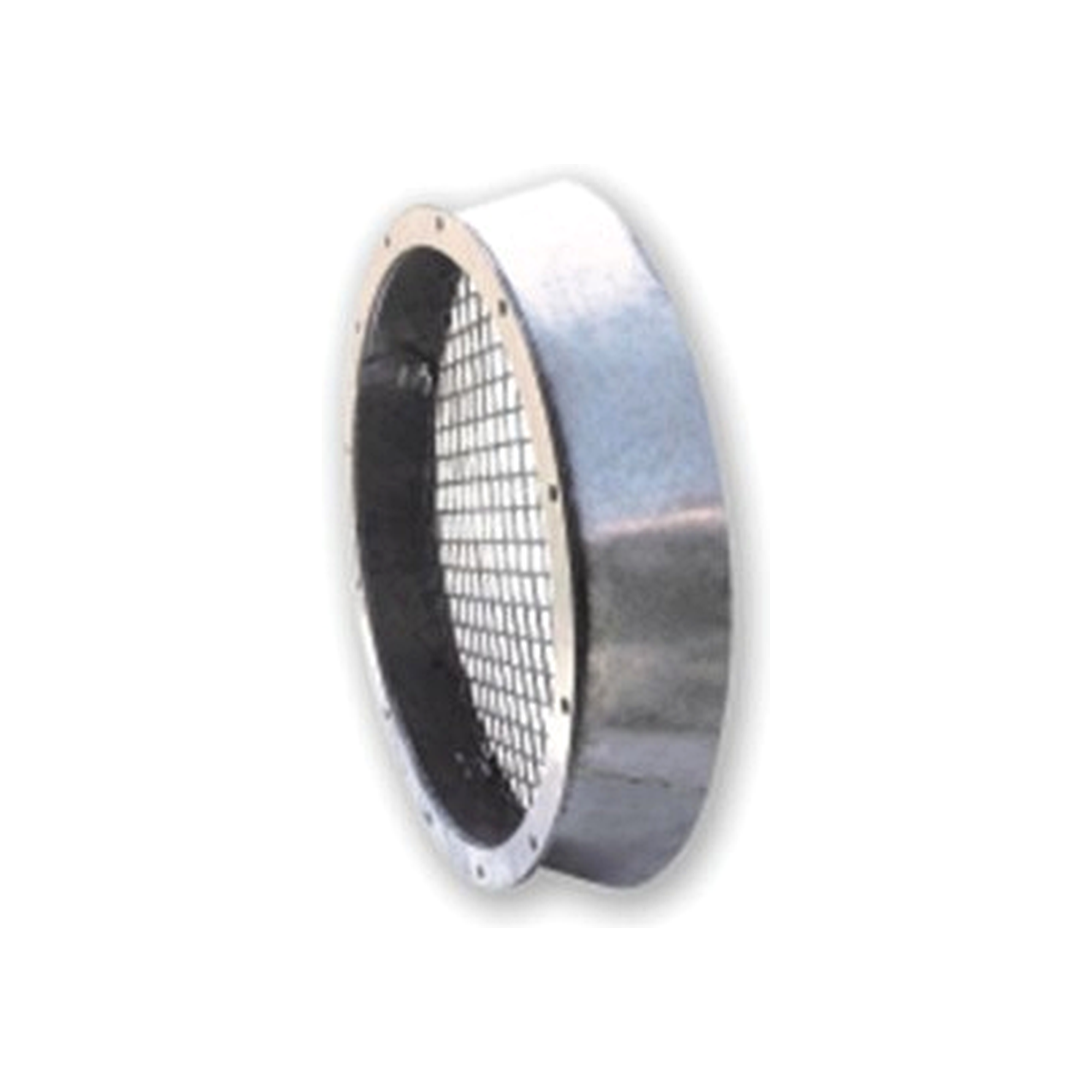

Inlet Cones MUA

Inlet Cones MUA

Price on application
Price on application. Select the exact model or configuration, then request current pricing from Streamline Commercial Kitchens.
Request pricing
sales@slck.com.au

CIC Inlet Cones for all AX/AT/AC/AY/AZ/AB Series Fans Manufactured from heavy gauge steel with a single bolted flange DATA SHEET Flanges-Feet – Cones- Download

SKU: CFM-CONE-MUA
Category: ,

Description



  • CIC Inlet Cones for all AX/AT/AC/AY/AZ/AB Series Fans
  • Manufactured from heavy gauge steel with a single bolted flange
  • Standard accessory losses (k) 0.38
  • Pressure drop (Pa) = 0.6 x k x Velocity (m/s)
  • Cone flange holes match fan cases and flanges

DATA SHEET Flanges-Feet – Cones- Download

Shipping Dimensions

Weight 2 kg
Dimensions 50 × 50 × 5 cm
Fan size

315 mm fan size, 400 mm fan size, 450 mm fan size, 500 mm fan size, 560 mm fan size, 630 mm fan size, 710 mm fan size, 800 mm fan size, 1000 mm fan size, 1120 mm fan size, 1250 mm fan size, 1400 mm fan size, 1530 mm fan size, 1600 mm fan size, 1800 mm fan size, 2000 mm fan size
