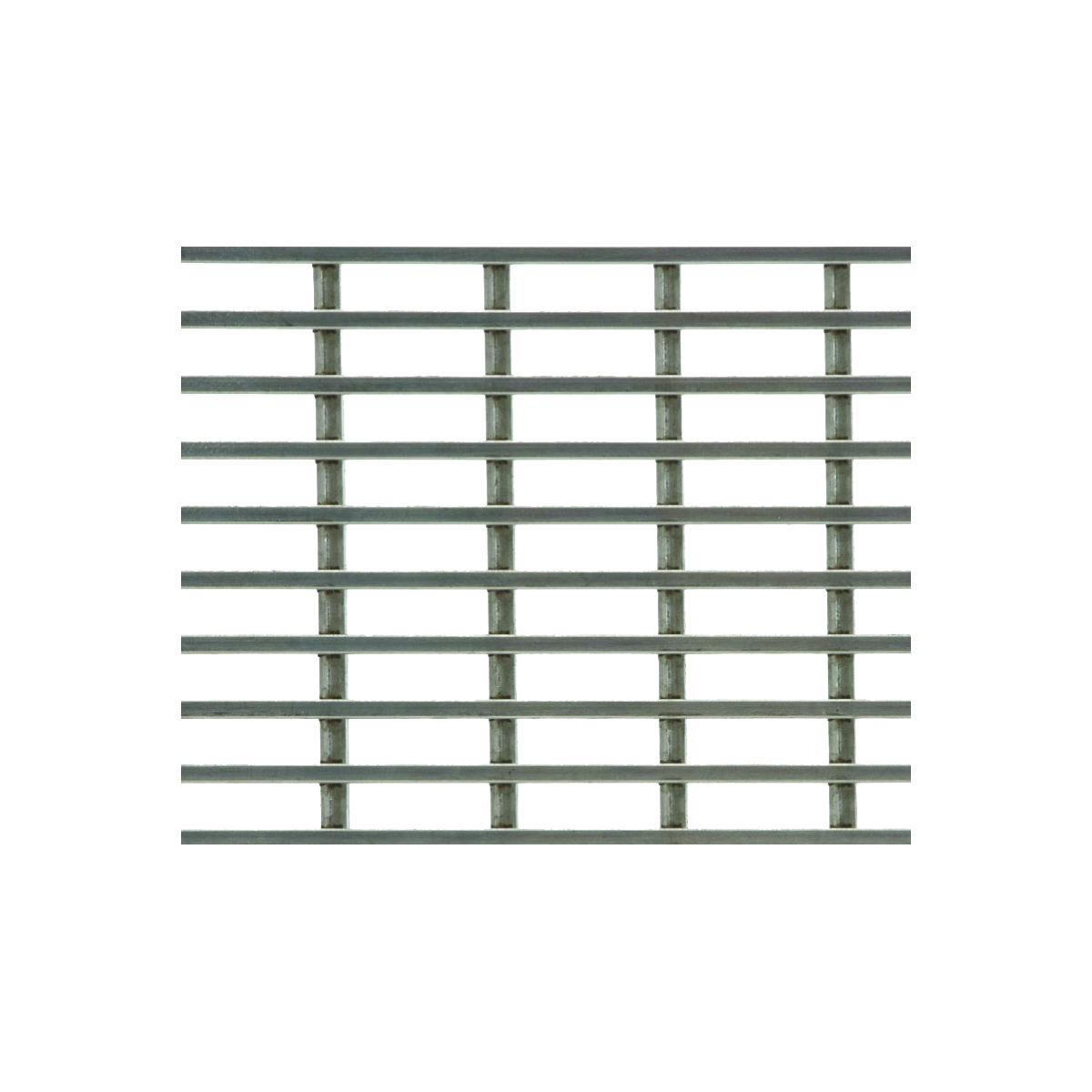

Wedge Wire Sheet (G100) 304 or 316 Grade

$1,225.73 Inc GST

Wedge wire is a versatile material, suitable for drainage and screening applications. It has high flow characteristics, as it provides a substantial clear opening in ratio to the overall surface area of the grate. This makes it ideal for drainage and wash down applications.

Description

Wedge Wire
WW-G100-304 WW-G100-316
Features and Benefits

Size 2.25mmW x 3.50mmH. Gap 5.00mm
Support Bars 3.00mmW x 6.25mmH. Gap 16.00mm
Convenient sheet size minimises wastage – 2400mm x 727mm
304 or 316 grade stainless steel
Versatile and long lasting
Flat bed manufacturing technique – not rolled
Available off the shelf
